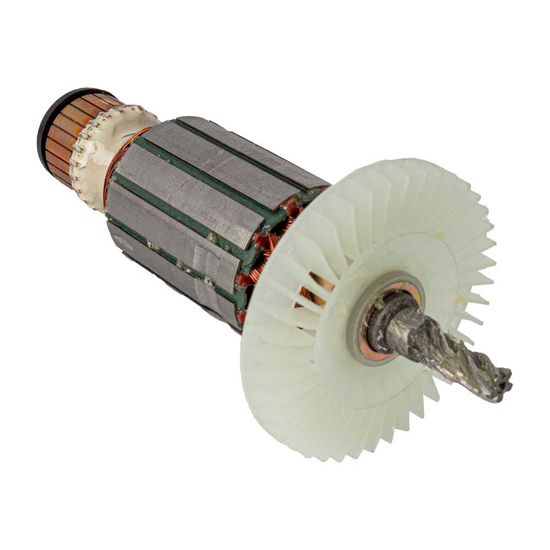

Armature (26) Motor Service Kit

Features

• Replacement armature assembly Restores motor function when the original armature is damaged or electrically faulty.
• Diagram-referenced fitment Matches part (26) in the TCMD0035-50HD motor service layout.
• Supports smoother running Helps reduce harsh running and abnormal sparking caused by armature faults.
• Genuine Tork Craft motor service spare Proper-fit part for dependable rebuilds and repairs.

Benefits

• Restored power and performance: A healthy armature helps bring back proper torque and stable motor speed.
• Improved reliability: Replacing a failing armature can prevent repeat electrical faults and further damage to brushes and control components.

Extra Information

• Compatibility: For the Tork Craft TCMD0035-50HD motor assembly (motor service diagram part 26).
• Common symptoms to replace: Burning smell, heavy sparking, loss of power, rough running, tripping, or motor not starting.
• Service note: When replacing an armature, inspect (and often replace) carbon brushes and bearings, and clean the commutator/brush area for best results.

Specifications

Safety

• Disconnect the tool from power before opening the motor housing or servicing internal components.
• Electrical motor repairs should be done by a competent technician to prevent shock or damage.
• Ensure the commutator area is clean and all wiring is correctly routed and insulated before reassembly.
• After reassembly, perform a brief no-load test before drilling to confirm smooth, stable operation.
