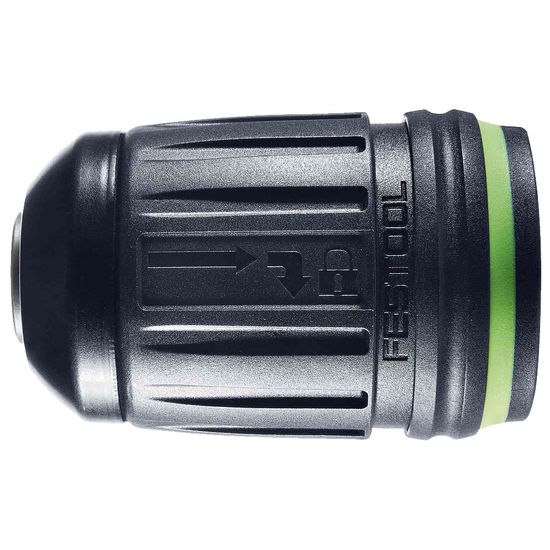

Name: FESTOOL BF-TI 13 FastFix 13mm Keyless Drill Chuck for TI 15
Brand: FESTOOL
SKU: FES498886
Price: 3793.85 ZAR
Availability: InStock

FESTOOL BF-TI 13 FastFix 13mm Keyless Drill Chuck for TI 15

Stock: In Stock
Brand: FESTOOL
Model: FES498886 360206
Weight: 0.40kg
Dimensions: 10.50mm x 6.50mm x 6.50mm
SKU: FES498886
UPC: 4014549174647

Based on 0 reviews. - Write a review

R 3,793.85

Ex VAT: R 3,299.00

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Festool BF-TI 13 FastFix 13mm Keyless Drill Chuck for TI 15

At a Glance: FastFix keyless drill chuck with a 1.5 - 13mm clamping range and integrated impact shut-off for the Festool TI 15.

Expand the versatility of the Festool TI 15 impact driver with the Festool BF-TI 13 FastFix Keyless Drill Chuck. Designed specifically for the TI 15, this intelligent attachment automatically disengages the machine&s impact mechanism when fitted, allowing the tool to be used for controlled rotary drilling. Its robust keyless chuck accepts conventional round-shank and suitable hex-shank drill bits from 1.5mm to 13mm, while stepless speed control up to 2600rpm provides the control required for a wide range of drilling applications.

Convert the TI 15 from impact driving to controlled rotary drilling

The BF-TI 13 is more than a standard drill chuck. Its integrated impact shut-off function changes the TI 15 into rotary drilling mode when the attachment is installed, protecting conventional drill bits from the hammering action of the impact mechanism. The FastFix connection also allows the chuck to be fitted or removed quickly without additional tools.

Product highlights

Integrated impact shut-off: Automatically disengages the TI 15 impact mechanism for conventional rotary drilling.
Wide clamping range: Accepts drill bits and suitable accessories with shanks from 1.5mm to 13mm.
FastFix connection: Allows fast, tool-free installation and removal from the compatible machine.
Keyless operation: Drill bits can be secured without a separate chuck key.
Stepless speed control: Enables controlled drilling at speeds up to 2600rpm.
Purpose-built compatibility: Developed specifically for the Festool TI 15 impact driver.

Features

13mm keyless chuck: Accommodates a broad range of commonly used drill-bit shank sizes.
Automatic mode conversion: The integrated mechanism switches off impact operation when the chuck is fitted.
FastFix interface: Provides quick attachment changes without using separate tools.
Manual chuck tightening: The bit is secured by rotating the chuck sleeve by hand.
Variable-speed compatibility: Works with the TI 15&s stepless speed control for drilling up to 2600rpm.
Festool system design: Engineered to connect securely and operate correctly with the designated TI 15 machine.

Benefits

Greater tool versatility: Allows the TI 15 to perform conventional rotary drilling as well as its normal impact-driving tasks.
Protection for drill bits: Disengaging the impact mechanism prevents conventional bits from being exposed to unwanted impact action.
Fast accessory changes: The FastFix connection and keyless chuck minimise downtime when changing between drilling and driving.
Improved drilling control: Stepless speed regulation helps the operator match the drilling speed to the bit and material.
Broad bit compatibility: The 1.5 - 13mm clamping range accepts many conventional drilling accessories.

Application

Converting the Festool TI 15 impact driver for conventional rotary drilling.
Holding round-shank drill bits between 1.5mm and 13mm.
Drilling suitable wood, metal, plastic and composite materials.
Furniture manufacturing and cabinet installation.
Interior fitting, assembly and general installation work.
Workshop and on-site drilling tasks with the compatible TI 15.

Extra Information

The BF-TI 13 was designed specifically for the older Festool TI 15 impact driver.
This is a discontinued legacy Festool accessory and compatibility with current Festool impact drivers should not be assumed.
The chuck&s integrated mechanism disengages impact operation so that the TI 15 can perform conventional rotary drilling.
The chuck accepts accessories with shank diameters from 1.5mm to 13mm.
Maximum supported drilling speed is 2600rpm.
Confirm the exact machine model before ordering this older accessory.

Pro Tips

Clean the FastFix connection on both the machine and chuck before installation to ensure secure engagement.
Insert the drill-bit shank deeply enough for all chuck jaws to grip it evenly.
Tighten the keyless chuck firmly by hand and check that the bit runs centrally before drilling.
Begin drilling at a low speed to establish the hole accurately, then increase the speed as appropriate.
Use a centre punch when drilling metal to prevent the drill bit from wandering.
Reduce pressure as the drill bit approaches the back of the material to minimise breakthrough damage.

How to Use

Switch off the TI 15 and remove the battery pack before fitting the drill chuck.
Inspect and clean the machine&s FastFix connection and the matching chuck interface.
Fit the BF-TI 13 onto the TI 15 according to the machine&s FastFix attachment procedure.
Check that the chuck is fully seated and securely locked to the machine.
Rotate the chuck sleeve to open the jaws sufficiently for the selected drill bit.
Insert the bit centrally between the jaws and tighten the chuck firmly by hand.
Refit the battery and briefly operate the tool at low speed to check that the bit runs correctly.
Select an appropriate speed and drill using steady, controlled pressure.
Remove the battery before loosening the chuck, changing the bit or removing the attachment.

Specifications

Description	Spec
Brand	Festool
Cat No.	FES498886
Festool Order No.	498886
Model	BF-TI 13
Product Type	FastFix Keyless Drill Chuck
Suitable For	Festool TI 15 Impact Driver
Minimum Clamping Diameter	1.5mm
Maximum Clamping Diameter	13mm
Clamping Range	1.5 - 13mm
Chuck Type	Keyless
Machine Connection	FastFix
Maximum Speed	2600rpm
Speed Control	Stepless
Special Function	Integrated Impact Mechanism Shut-Off
Operating Mode	Rotary Drilling
Product Status	Legacy / Discontinued Product

Scope of Delivery:

1 x Festool BF-TI 13 FastFix Keyless Drill Chuck

Safety

Wear suitable eye, ear and respiratory protection appropriate to the drilling material.
Remove the battery pack before fitting the chuck, changing drill bits or carrying out inspections.
Confirm that the BF-TI 13 is fully engaged with the FastFix interface before operating the machine.
Ensure the drill bit is centred and gripped securely by all chuck jaws.
Never hold the chuck by hand while operating the machine.
Do not exceed the specified maximum speed of 2600rpm.
Use drill bits rated for the selected speed and suitable for the material being drilled.
Secure loose workpieces with suitable clamps before drilling.
Do not use a damaged, cracked, excessively worn or poorly gripping chuck.
Follow all operating and safety instructions supplied with the Festool TI 15 and selected drilling accessory.
